P5039 Cube Wooden | STARMAX

P5039 - Wooden cube

help_outlineAsk about product

P5039 - Wooden cube

+48 606 482 848

Call us or use the form below

I accept privacy policy rules

Product code: P5039
Category: Wooden PLAYGROUNDS
Key information
✓
Age group
3+
✓
Device dimensions
3,10 x 4,91
✓
Standard compliance
EN 1176
✓
Base material
Glued laminated timber; Panels and platforms - HDPE; Slide chute - stainless steel; Bolts - stainless steel; Ropes - PP Ø 16 mm
Safety and installation
✓
Safety zone dimensions
6,08 x 8,08
✓
Safety zone area
37,89
✓
Free fall height (HIC)
1,50
Kontakt Starmax
Have questions? Talk to an adviser
We'll help you choose the right product, prepare a quote and answer technical questions.
+48 884 000 884 biuro@starmax.com.pl
Categories:

Cube Wooden – Active Toddler ♿

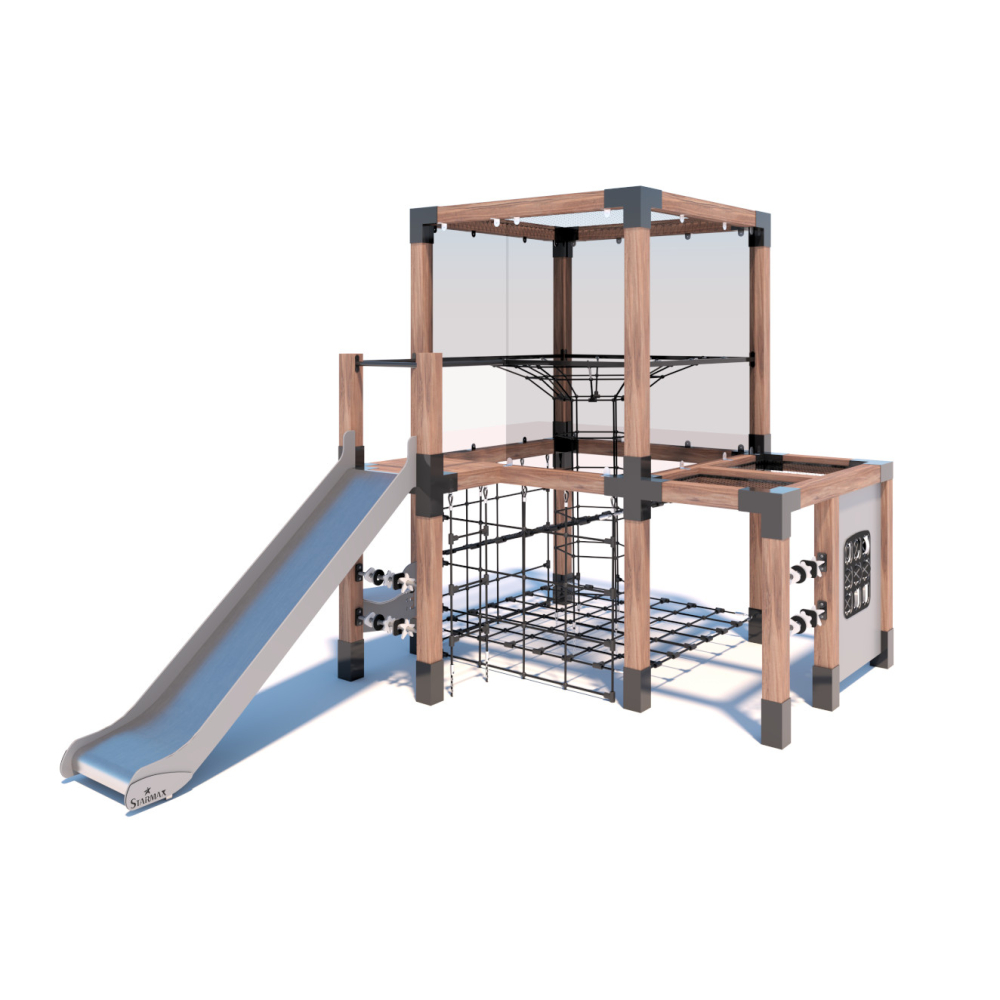

P5039 Cube Wooden is a two-level play set from the Cube collection, made of glued laminated timber and steel. Rope nets lead to the upper level, including a sloping net, a vertical net and a funnel net for climbing. A slide takes children back down to the ground. The upper level has transparent polycarbonate sheets, through which children can see what is happening inside and outside.

Three educational panels are at ground level: a shop, an abacus, and noughts and crosses. Children can play with them without going up to the upper level, so the set also suits younger children who do not use the upper level yet. This is playground equipment compliant with EN 1176, intended for children aged 3+.

Age group: 3+
Number of users: 18

Wooden playground Cube

Play Value

The two-level structure encourages children to climb up the nets and slide back down.

  • Climbing: nets with different layouts call for a different choice of route and holds each time, which strengthens the arms, legs and core and trains movement planning.
  • Balancing: walking across the nets trains balance and spatial orientation.
  • Sliding: the ride down gives joy and teaches how speed feels.
  • Logical thinking and role play: noughts and crosses requires planning moves, the shop lets children take on roles, and the abacus practises counting.
  • Social play: the transparent polycarbonate sheets let children see each other on different levels, which makes playing together easier.

Accessibility

The three educational panels are mounted low, at ground level. This lets children who do not use the upper level play with them: younger children, children with limited mobility, or those who prefer calmer forms of play. The transparent polycarbonate sheets on the upper level make supervision easier for the carer.

Wooden playground manufacturer STARMAX

20 Years of Timber Durability

We use structural glued laminated pine (BSH), strength class GL24h, manufactured in accordance with EN 14080. The timber is pressure-impregnated throughout 100% of its volume before gluing, use class 4. The impregnation protects the wood against biological decay. This class means the timber is intended for demanding outdoor conditions. The edges of the beams are rounded.

Advantages of glulam over solid timber: fewer deep cracks and sharp edges.

Finish: semi-transparent wood stain or UV-protective oil, which keeps the grain visible.

  1. Glued laminated pine boards
  2. Pressure impregnation throughout 100% of the volume
  3. Base coat of paint or oil
  4. Finishing coat of paint or oil

The natural beauty of a playground.

Timber for playgrounds – pressure-treated glued laminated pine

Technical Specification

Sets from the Cube collection are made of materials designed for intensive use in public spaces:

  • Glued laminated pine - GL24h strength class, EN 14080

  • Pressure-impregnated and coated beams – durable, stable and weather-resistant
  • Steel anchors that isolate the timber from the ground

  • Steel connectors and structural elements – provide rigidity and safety of the whole structure

  • Nets made of steel-core PP rope Ø16 mm (0.63 in) – resistant to stretching and vandalism

  • Platforms made of anti-slip plastic "Button" sheet

  • Polycarbonate sheets – transparent, eye-catching and safe

  • Wide stainless steel slide, 60 cm (23.6 in) - comfort during play,

  • HDPE educational panels – durable, easy to maintain and resistant to intensive use

  • The whole set meets the requirements of EN 1176, guaranteeing safe use in public spaces

Wooden playgrounds | STARMAX manufacturer
Reference
P5039
Warranty
5 years
Age group
3+
Inclusive
No
Device dimensions
3,10 x 4,91
Overall height
3,37
Safety zone dimensions
6,08 x 8,08
Safety zone area
37,89
Free fall height (HIC)
1,50
Standard compliance
EN 1176
Spare parts availability
10 years
Base material
Glued laminated timber; Panels and platforms - HDPE; Slide chute - stainless steel; Bolts - stainless steel; Ropes - PP Ø 16 mm
